What Are the Top Types of Grooved Fittings in 2026?

In 2026, grooved fittings remain a practical choice for piping systems that need fast assembly, accessible maintenance, and dependable connections. But “top” depends on the job. A rigid coupling suits lines where movement should be limited; a flexible coupling can accommodate modest deflection or vibration. Elbows, tees, reducers, and mechanical outlets help crews shape routes around pumps, beams, and existing pipework. Small details matter. A gasket must match the service, and pipe-end preparation must follow the manufacturer’s instructions.

Engineering author Henry Petroski offers a useful principle: “Engineering is the art of making what you want from things you can get.” Applied here, it means comparing fitting types against actual operating conditions, not choosing by catalog appearance alone. Pressure, temperature, pipe material, movement, and access all deserve attention. A fitting that looks convenient on a drawing may be awkward beside a valve or above a crowded ceiling. That happens.

This guide examines the leading grooved fittings categories, their typical uses, and the trade-offs that can shape selection in 2026. It also considers where flexible connections help—and where rigidity is the better choice. Product performance varies by design and application, so verify compatibility with current technical data and qualified project guidance. No single fitting solves every layout. That is worth remembering.

Table of Contents [Hide]

1 What Are Grooved Fittings and How Are They Classified?

2 Rigid and Flexible Grooved Couplings

3 Grooved Elbows, Tees, Crosses, and Laterals

4 Grooved Reducers, Caps, and Specialty Fittings

5 How to Select the Right Grooved Fitting for an Application

What Are Grooved Fittings and How Are They Classified?

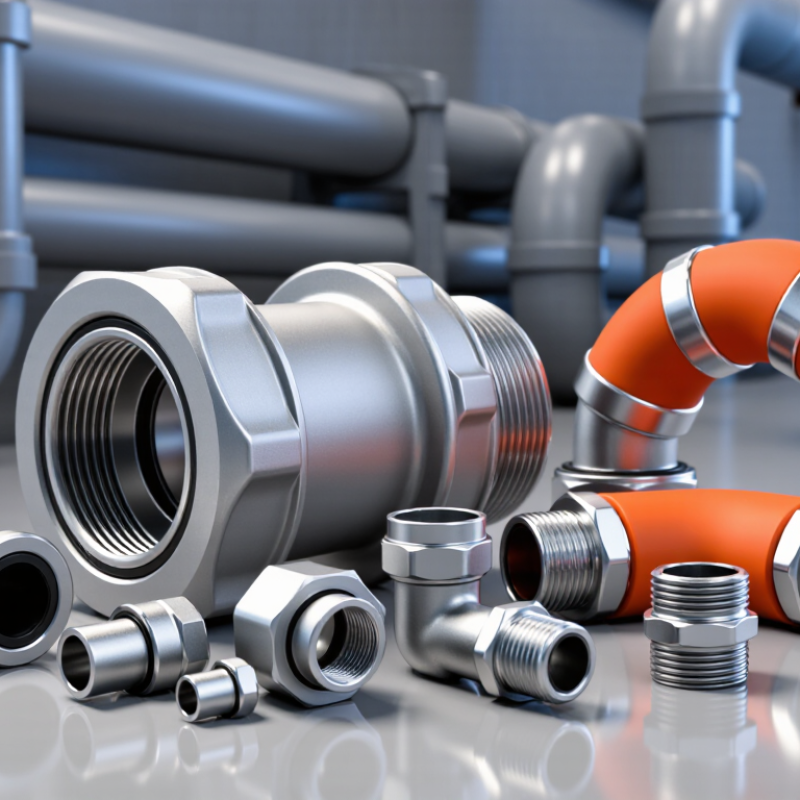

What Are the Top Types of Grooved Fittings in 2026?

Grooved fittings connect pipe sections through a groove near each pipe end. A gasket sits between the ends, while a housing and bolts hold the joint together. This design can make installation and maintenance more practical. The exact fit still depends on pipe dimensions and system requirements.

Fittings are commonly classified by function. Couplings join straight pipe sections; rigid couplings limit movement, while flexible ones allow some deflection or expansion. Elbows change direction, tees create branch connections, and reducers join pipes of different sizes. Caps close an open end. Some fittings are also grouped by material, coating, or pressure rating. That distinction matters. In practice, these categories can overlap, and a fitting’s label alone may not confirm compatibility. Check its dimensions, gasket material, and rated service conditions against the project specifications.

Tips: Measure the pipe groove and outside diameter before ordering. Confirm the fitting and gasket suit the fluid, temperature, and pressure. Small mismatches matter. When uncertain, consult the product documentation or a qualified piping professional.

What Are the Top Types of Grooved Fittings in 2026? — What Are Grooved Fittings and How Are They Classified?
Type	Classification	Shape or Connection	Typical Function	Selection Considerations
Definition: Grooved fittings are pipe components with grooved ends that connect to grooved pipe using a coupling and gasket. They are commonly classified by geometry and function, such as changing direction, creating a branch, changing pipe size, closing a pipe end, or connecting to another component.
90° Elbow	Directional fitting	Two grooved ends meet at a right angle.	Changes the direction of a pipeline by 90 degrees.	Check the fitting’s size, center-to-end dimensions, material, and system pressure and temperature requirements.
45° Elbow	Directional fitting	Two grooved ends meet at a 45-degree angle.	Changes direction more gradually than a 90° elbow.	Confirm that the angle and layout suit the piping route and available installation space.
Equal Tee	Branch fitting	Three outlets; the run and branch are the same nominal size.	Creates a branch connection from a straight pipe run.	Verify that all outlet sizes and the fitting configuration match the piping layout.
Reducing Tee	Reducing branch fitting	Three outlets, with a smaller branch or other reduced outlet.	Creates a branch while connecting pipes of different nominal sizes.	Specify the run and branch sizes clearly; do not assume the branch is centered or oriented in a particular way.
Reducer	Size-transition fitting	Connects grooved pipe ends of different nominal sizes; designs may be concentric or eccentric.	Transitions between larger and smaller pipe sizes.	Choose concentric or eccentric geometry according to the piping arrangement and drainage or air-management needs.
End Cap	End-closure fitting	One grooved connection with a closed end.	Closes the end of a grooved pipe run.	Confirm size and system compatibility; a capped line may still require suitable support and pressure-rated components.
Cross	Multi-branch fitting	Four outlets arranged around a central body.	Connects a run with two branches in intersecting directions.	Availability and configuration vary by piping system; check dimensions and flow requirements before specifying.
Mechanical Tee	Branch outlet fitting	A bolted housing attaches around a prepared opening in the pipe; the branch outlet may be grooved or threaded.	Adds a branch connection without replacing a section of the main pipe with a conventional tee.	Follow the fitting instructions for pipe preparation, opening dimensions, gasket placement, and outlet connection type.
Grooved-End Flange Adapter	Connection adapter	One end connects to a grooved coupling; the other provides a flanged connection.	Connects grooved piping to flanged equipment, valves, or piping.	Match the flange dimensions and pressure rating to the mating component and piping system.
Classification summary: Grooved fittings can be grouped as directional fittings, branch fittings, size-transition fittings, end closures, and connection adapters. Available materials, dimensions, pressure ratings, and approved applications depend on the specific fitting and system; check the applicable product data and project requirements.

Rigid and Flexible Grooved Couplings

Rigid and flexible grooved couplings solve different problems in piping systems. Rigid couplings create a restrained joint, helping keep straight runs aligned near pumps, valves, and equipment. They suit locations where movement is not intended. Flexible couplings allow limited angular or linear movement, depending on the coupling design and installation. They can also help accommodate vibration and thermal movement. That matters.

Selection should follow the system’s movement needs, not convenience alone. On a long, straight fire-protection main, rigid joints may help maintain alignment. Near equipment or where movement is expected, a flexible joint may be more suitable. Installers should check the coupling’s listed deflection and movement limits, then confirm pipe-end preparation and bolt tightening. A small installation error can undermine an otherwise suitable choice.

The NFPA report U.S. Experience with Sprinklers (2021) found that sprinklers operated in 92% of fires large enough to activate them, and were effective 96% of the time they operated. That report measures sprinkler performance, not grooved fittings. Still, it highlights why dependable system components matter. One judgment call remains: flexibility is useful only where the design allows it. Too much movement at the wrong location can create alignment or support problems, so joint type and placement deserve careful review.

Grooved Elbows, Tees, Crosses, and Laterals

Grooved elbows, tees, crosses, and laterals solve different routing problems. Elbows turn pipe around beams or columns; 90-degree elbows make sharp changes, while 45-degree elbows create gentler offsets. Tees split a main run into a branch, often feeding a sprinkler line or equipment connection. Crosses serve four-way intersections, but their extra outlets can complicate flow balancing and maintenance access. Laterals connect a branch to a main at an angle, helping crews route around tight spaces. Measure carefully. A fitting that looks right on paper may clash with a hanger in the field.

For fire-protection layouts, connection quality matters as much as fitting choice. NFPA’s 2021 report, U.S. Experience with Sprinklers, found sprinklers operated in 92% of fires large enough to activate them and were effective 96% of the time when they operated. Those figures describe sprinkler performance, not grooved fittings, but they underline the value of reliable system installation. Match each fitting to the pipe size, pressure rating, and approved design; inspect grooves, gaskets, and coupling engagement during assembly. Crosses can save space, yet they are not automatically the best choice. I have seen compact layouts become harder to inspect. Leave room for tools and future repairs.

Grooved Reducers, Caps, and Specialty Fittings

Grooved reducers connect different pipe diameters while keeping installation compact. Concentric reducers suit many vertical runs; eccentric reducers can help maintain a level pipe bottom in horizontal drainage or process lines. Grooved end caps close branches or test sections, but they must be rated for the system’s pressure and service conditions. Small details matter: a cap’s gasket seating surface needs to be clean and undamaged before assembly. AWWA C606 provides requirements for grooved and shouldered joints, making it a useful reference when specifying compatible components.

Specialty fittings include grooved tees, mechanical outlets, and branch connections. They can reduce field welding, but layout still deserves careful review. A poorly placed outlet may obstruct access or create awkward support loads. Grand View Research’s 2024 Fire Protection Systems Market report estimated the market at USD 76.39 billion in 2023, with projected growth through 2030. That broader market figure signals continued investment in fire protection; it does not prove that one fitting type is best for every project. Verify dimensions, materials, pressure ratings, and applicable project specifications.

Tips: Confirm pipe outside diameter before ordering. Check gasket compatibility with the fluid and temperature. Dry-fit the assembly when practical. Even experienced crews can miss a mismatch.

How to Select the Right Grooved Fitting for an Application

Grooved fittings include rigid and flexible couplings, elbows, tees, reducers, caps, and mechanical outlets. Choose by operating conditions, not appearance alone. Confirm the pipe’s outside diameter and groove profile; nominal size can be misleading. Then check pressure, temperature, fluid, and expected vibration or thermal movement. Details matter.

For a tight ceiling space, an elbow’s turn and clearance may matter more than its size on paper. A flexible coupling can accommodate limited movement, but it is not a universal expansion joint. Match the gasket material to the fluid and temperature, and confirm the fitting’s rating suits the system. For chilled-water, fire-protection, or process piping, check applicable project specifications and installation requirements.

Before assembly, inspect the pipe ends and grooves for damage, coating buildup, or uneven dimensions. Use the specified lubricant and bolt-tightening method; uneven tightening can affect the joint. A groove gauge is useful, but it cannot replace careful inspection. It is easy to focus on the fitting and overlook the pipe preparation. That part deserves attention too. When conditions are unusual, verify the selection with a qualified piping professional rather than guessing from a catalog image.
