Product : Sant Cast Steel Moisture Separator
Body Material cum standard : CCS (ASTM A-216 Gr. WCB)
Product Description :
End Details : Flanges as per BS10 Table F
Body Test Pressure : 40kg/cm² Hyd.
Maximum Working Temperature : 20kg/cm²
Our Works’ Test Certificate is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body | C.C.S. | ASTM A216 Gr. WCB |
| Gasket | Compressed Asbestos Fiber | — |
| Drain Plug | S.S. | AISI-410 |

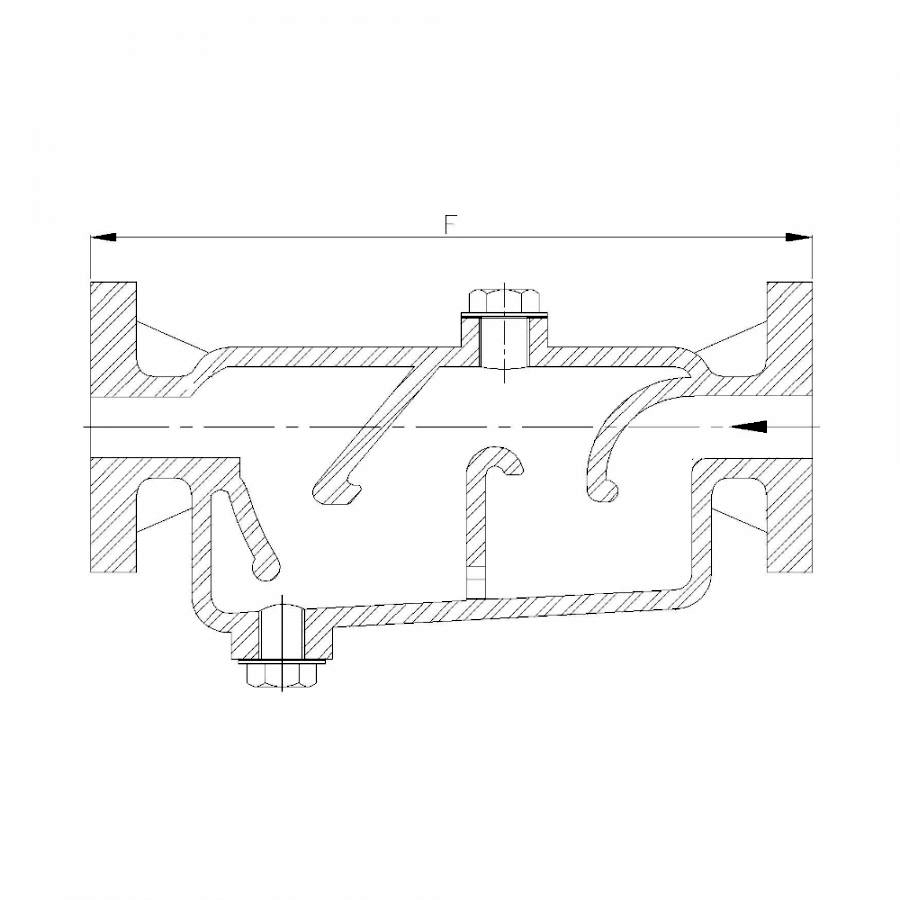

| Nominal Size | Nominal Size (Inches) | F | |
|---|---|---|---|
| 25 | 1 | 300±2 | |
| 40 | 1.1/2 | 370±2 | |
| 50 | 2 | 466±2 | |
| 65 | 2.1/2 | 485±2 | |
| 80 | 3 | 485±2 | |
| 100 | 4 | 696±2 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
