Product : Sant Bronze Right Angle Lift Check Valve
Type of Pattern : Angle Type
Body Material cum standard : Gun Metal (IS:318 Gr.LTB2 )
Product Description : Screwed in Cover
Type of Seat : Integral Seat
Trim : Cu Alloy
End Details : Screwed female threads BSP (Parallel)
Body Test Pressure : 300 Psig. Hyd.
Seat Test Pressure : 200 Psig. Hyd.
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet and Valve Disc | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| O” – Ring | Rubber | NBR |

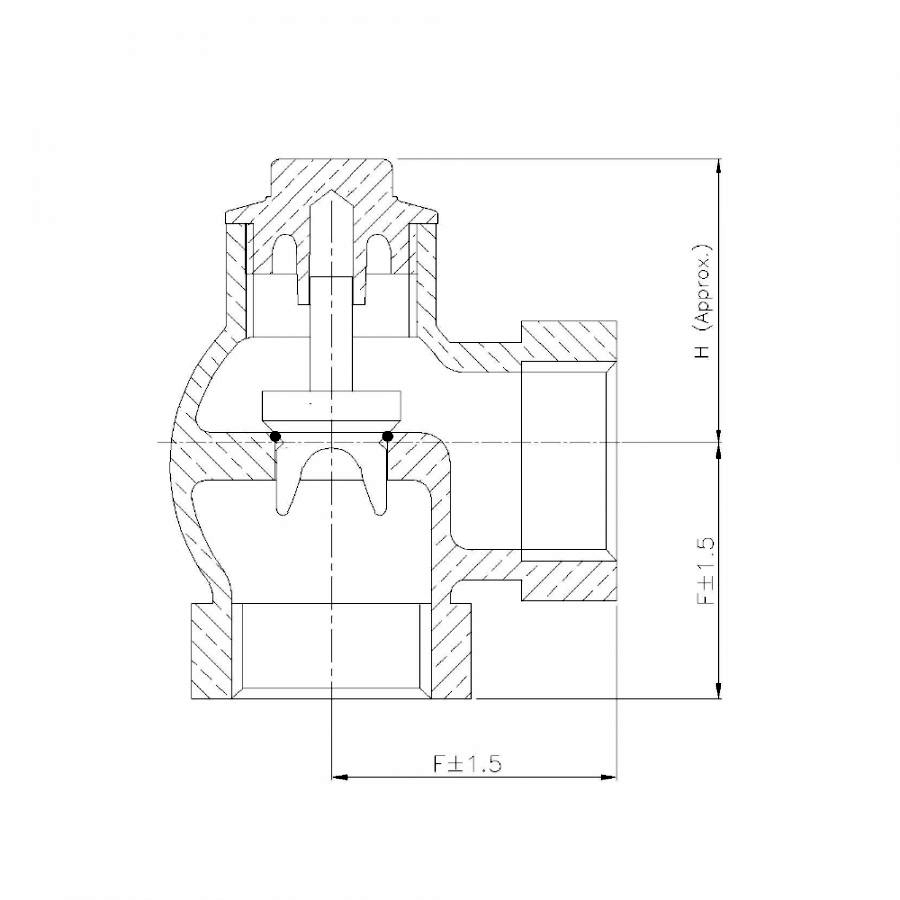

| Nominal Size | Nominal Size (Inches) | F | H (Approx.) |
|---|---|---|---|
| 15 | 1/2 | 28±1.5 | 35 |
| 20 | 3/4 | 38±1.5 | 43 |
| 25 | 1 | 47±1.5 | 55 |
| 32 | 1.1/4 | 52±1.5 | 60 |
| 40 | 1.1/2 | 56±1.5 | 66 |
| 50 | 2 | 62±1.5 | 75 |
| 65 | 2.1/2 | 80±1.5 | 88 |
| 80 | 3 | 90±1.5 | 100 |
| 100 | 4 | 110±1.5 | 115 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
