Product : Sant Cast Steel Piston Valve
Pressure/Class /Rating : Class-150
Body Material Cum Standard : C.C.S. (ASTM A-216 Gr. WCB)
Product Description : Bolted Bonnet O.S. Yoke Type Rising Stem
Type of Seat : Renewable
Type of Wedge : Piston Type
Trim : AISI-410
End Details : Flanges as per ASME B 16.5 Class-150
Body Test Pressure : 30 Barg (435Psig.) Hyd.
Seat Test Pressure : 22 Barg (350Psig.) Hyd.
| Components | Materials | Specifications |
|---|---|---|
| Wheel | CI | – |
| Bush | Cu | – |
| Bonnet | ASTM A216 GR WCB | – |
| Stem | AISI-1045 | – |
| Nut | AISI-1045 | – |
| Studs | AISI-1045 | – |
| Piston | AISI-420 | – |
| Seal | GRAPHITE | – |
| Piston Guide | ASTM A216 GR WCB | – |
| Body | ASTM A216 GR WCB | – |

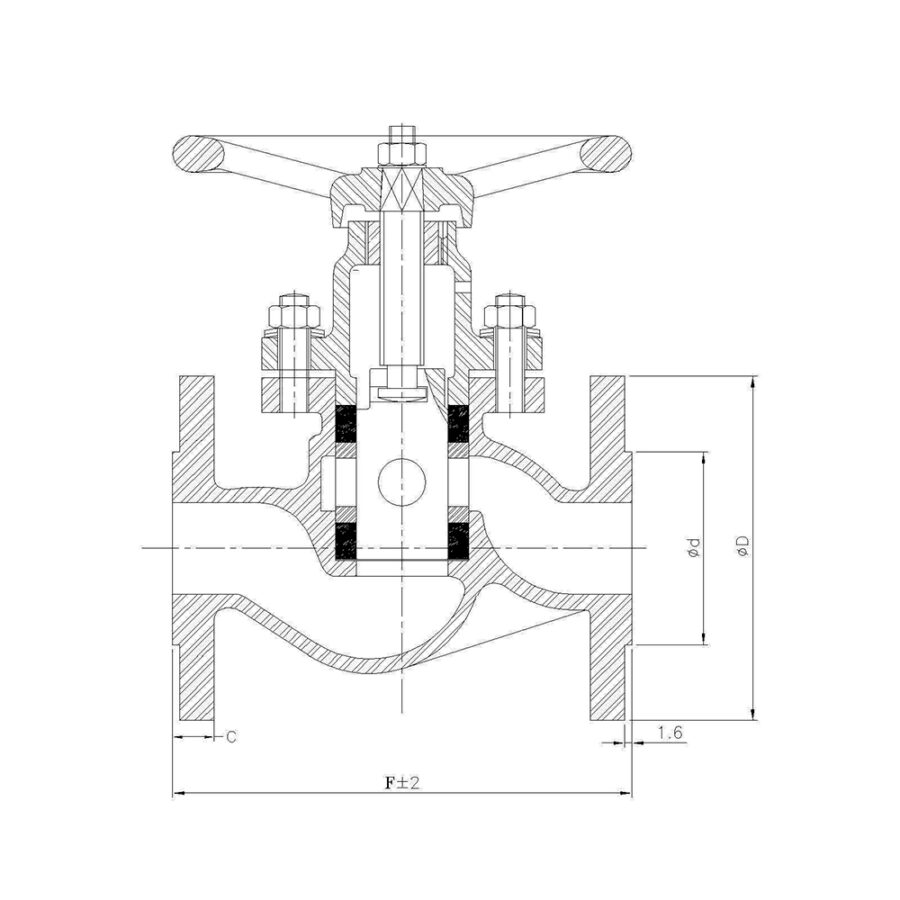

| Size | F | D | d | C |
|---|---|---|---|---|
| 25 | 127 | 110 | 50.8 | 14.2 |
| 40 | 165 | 125 | 73 | 17.5 |
| 50 | 203 | 150 | 92 | 19.1 |
| 80 | 241 | 190 | 127 | 23.9 |
| 100 | 292 | 230 | 157 | 23.9 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
